Kayak

Summary

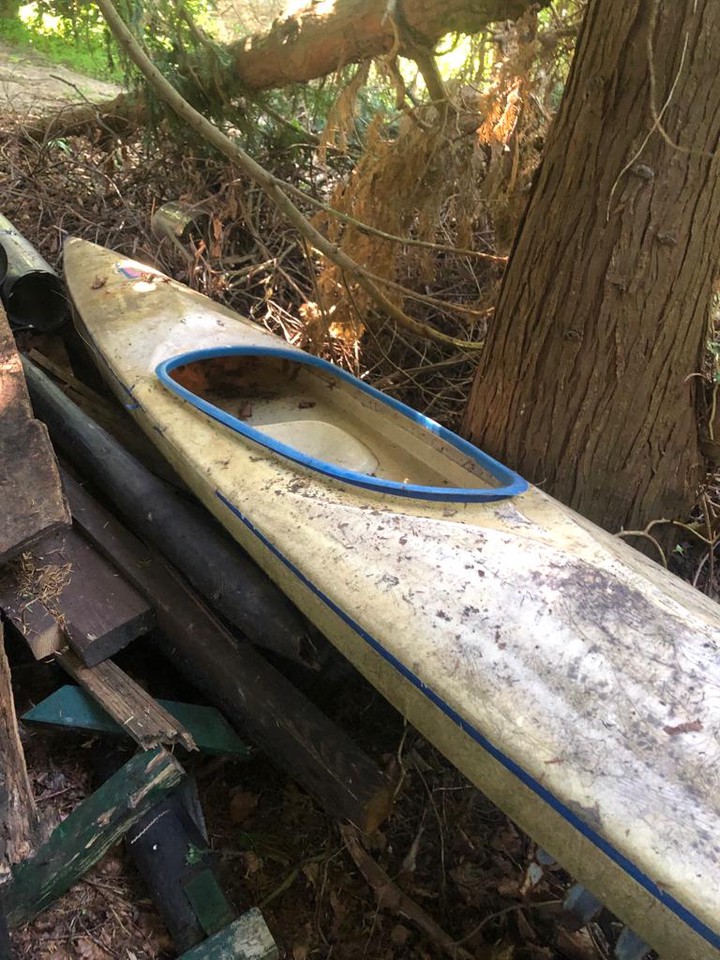

  • Kayak, donated by a friend who found it in their backyard. Observations

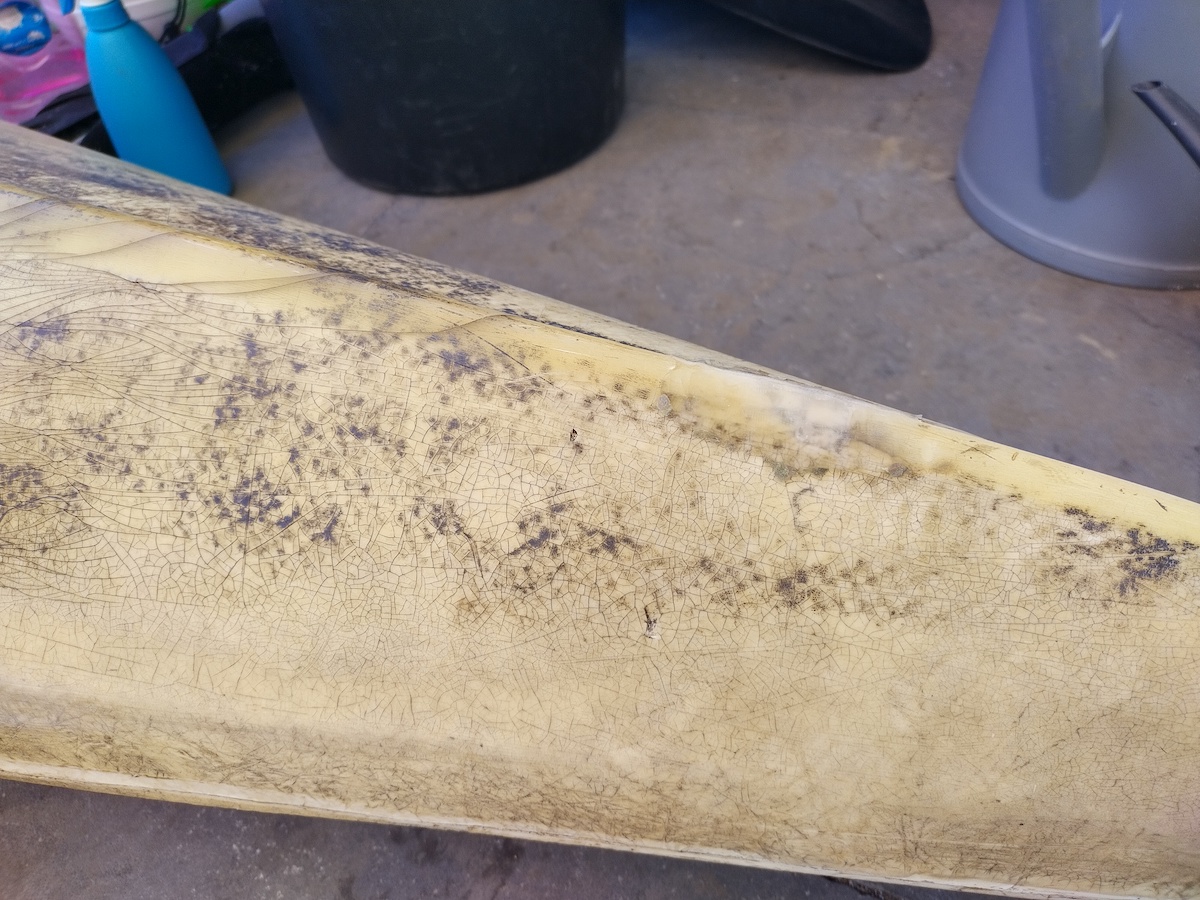

    • holes plus small and big cracks on both the top and bottom
    • bottom holes have been ‘fixed’ by adding half a meter of PU foam on each side
  • ToDo list
    • [done] fix the above
    • [done] Adding hatches and walls separating it from the sitting area
    • Painting bottom and top
    • Adding bungee cord for storage on top of kayak

The progress so far:

jpg

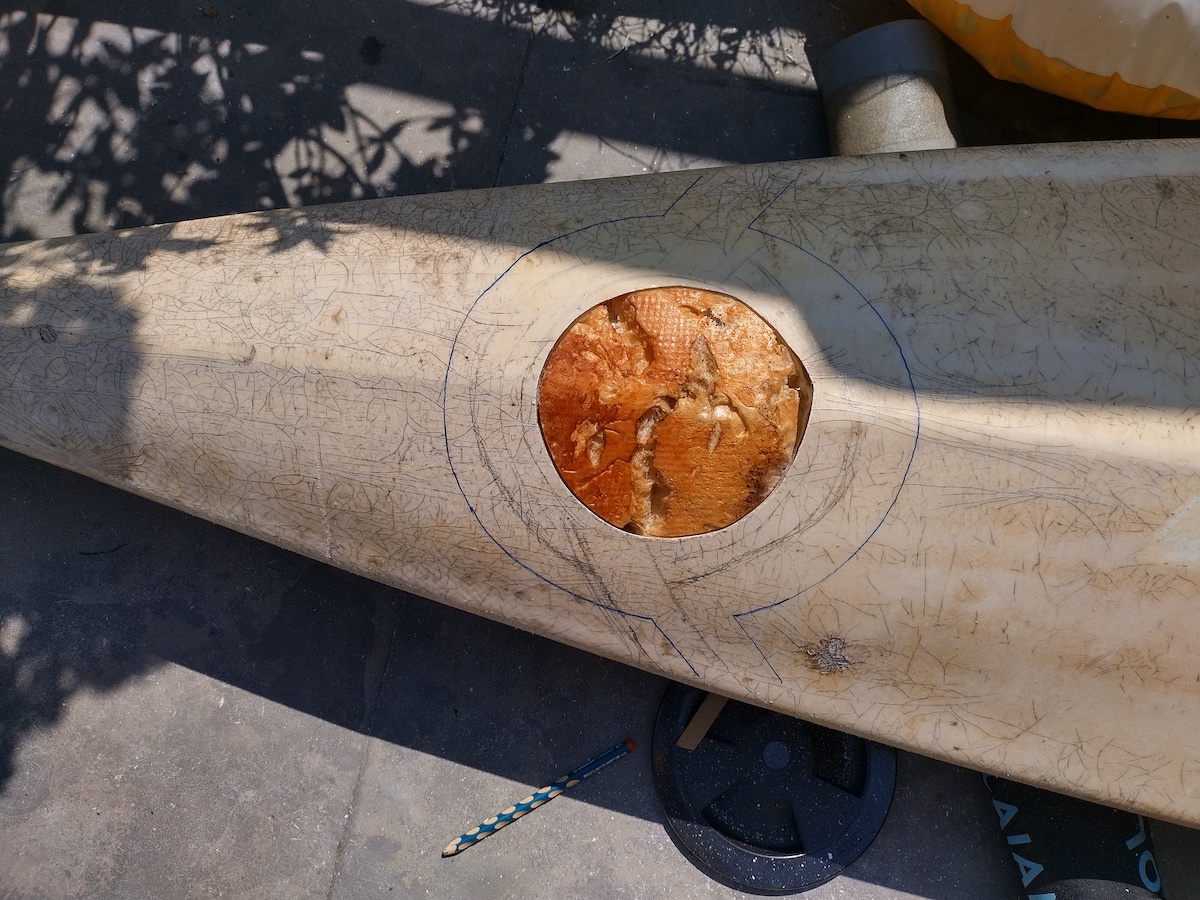

  • Remove pu foam

jpg

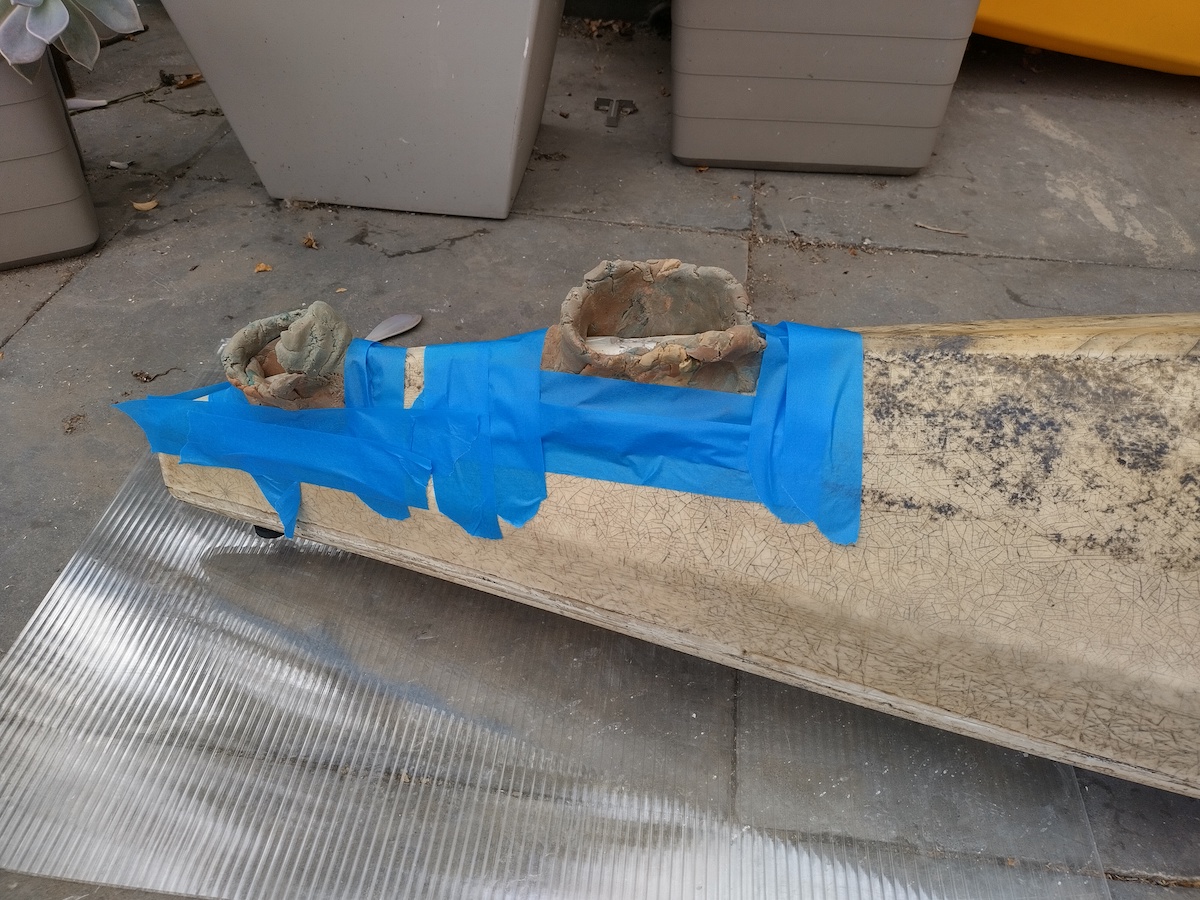

  • Plugging the hole from the inside and outside (matching the v shape at the bottom)

jpg

  • Remove excess resin

jpg

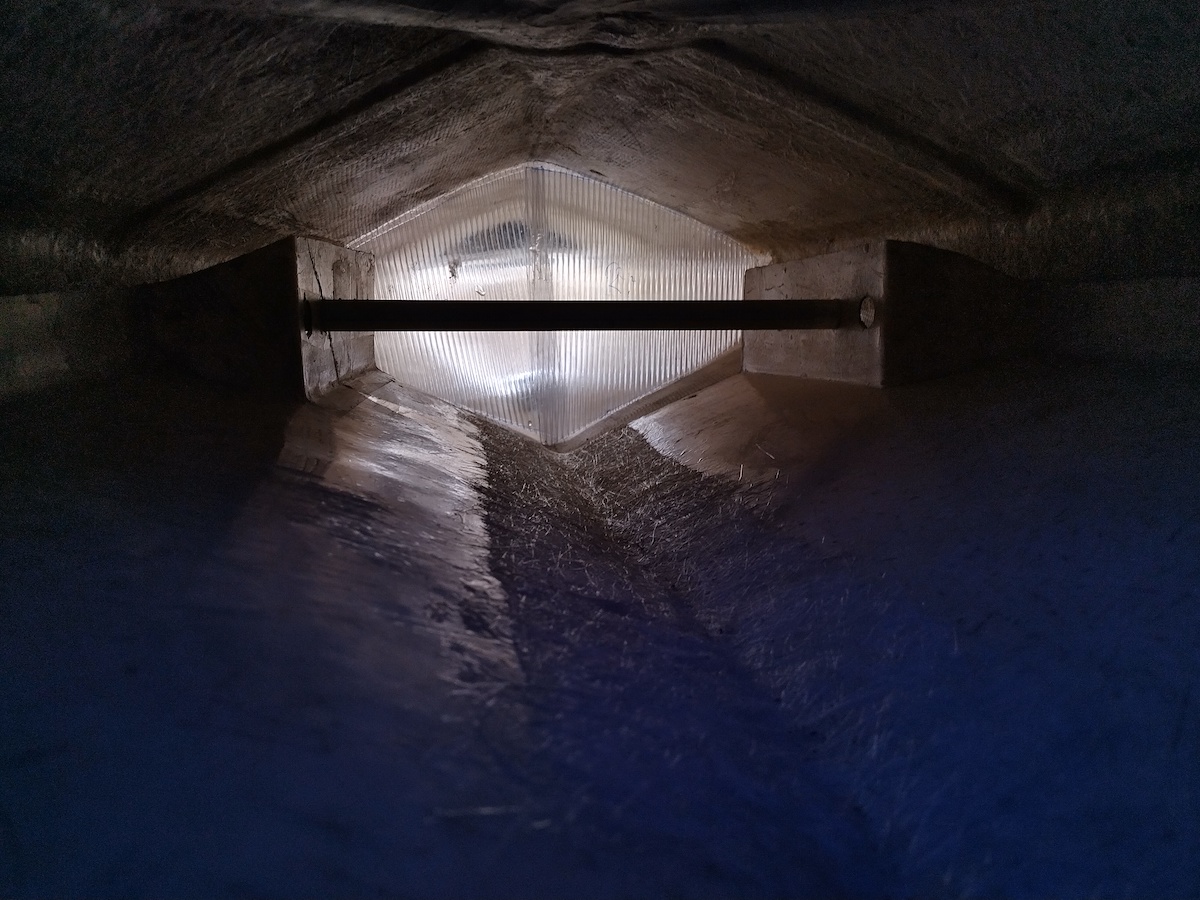

  • Templating the wall with polycarbonate sheets (using this also a buffer later on)

jpg

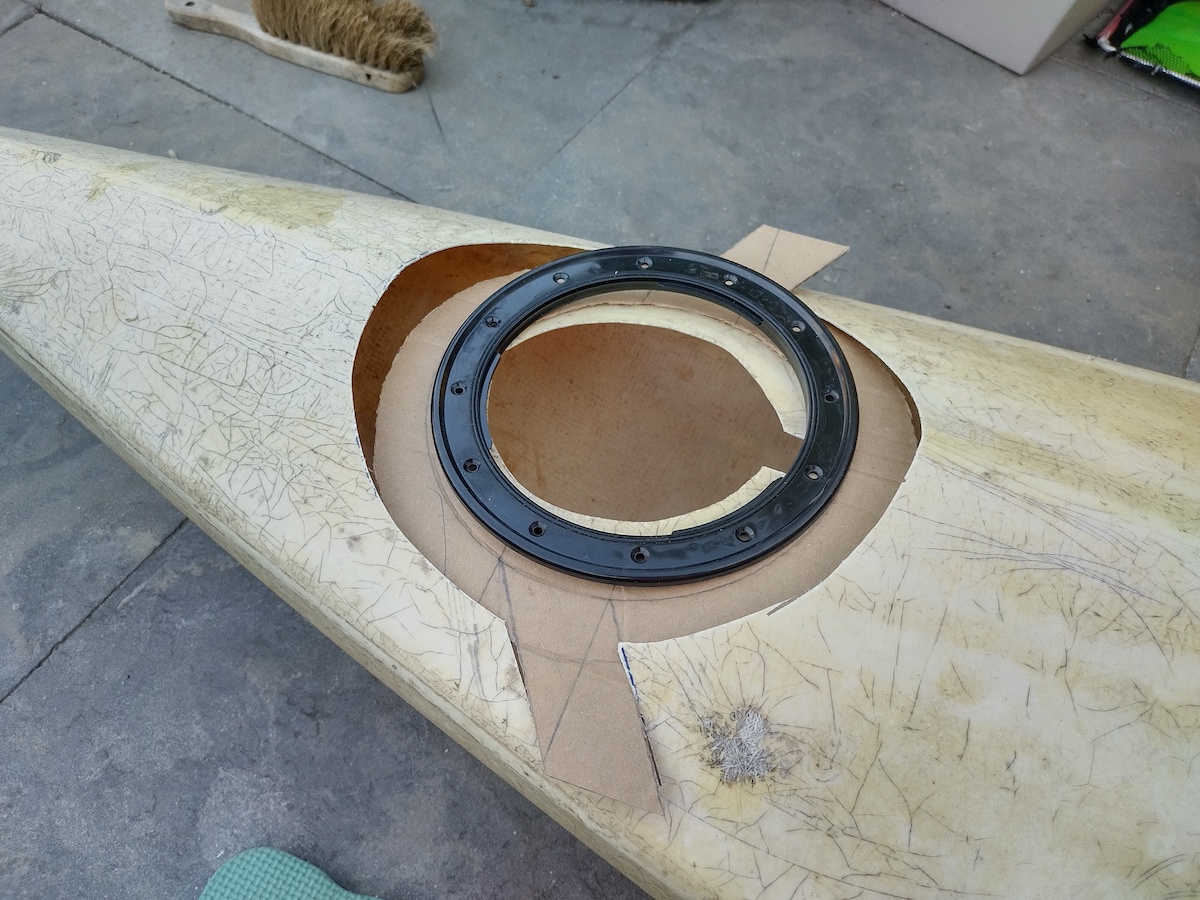

  • Templating the deck hatch with cardboard (lowered) including the ability for water to drip off

jpg

  • Templating the deck hatch with polycarbonate sheet

jpg

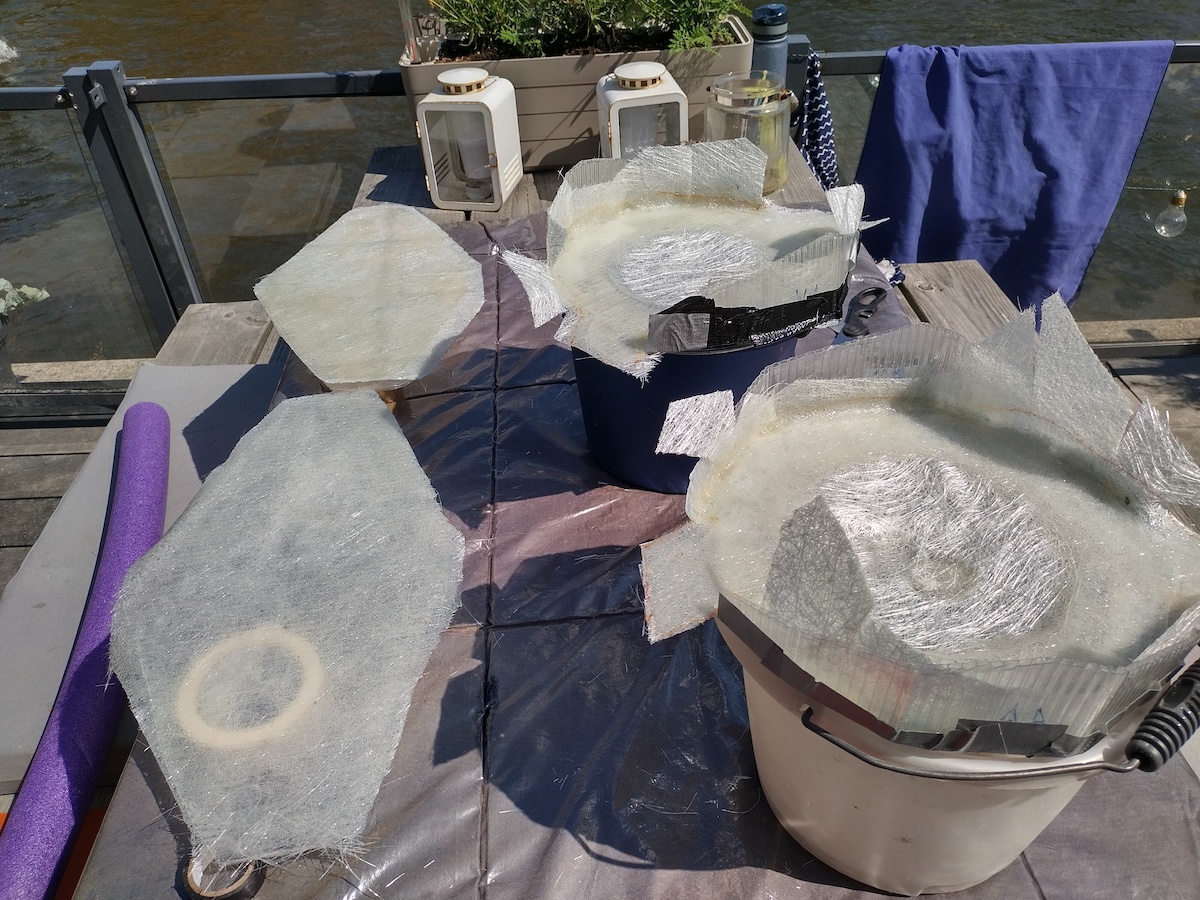

  • Adding resin to templated polycarbonate sheets (hatch and wall)

jpg

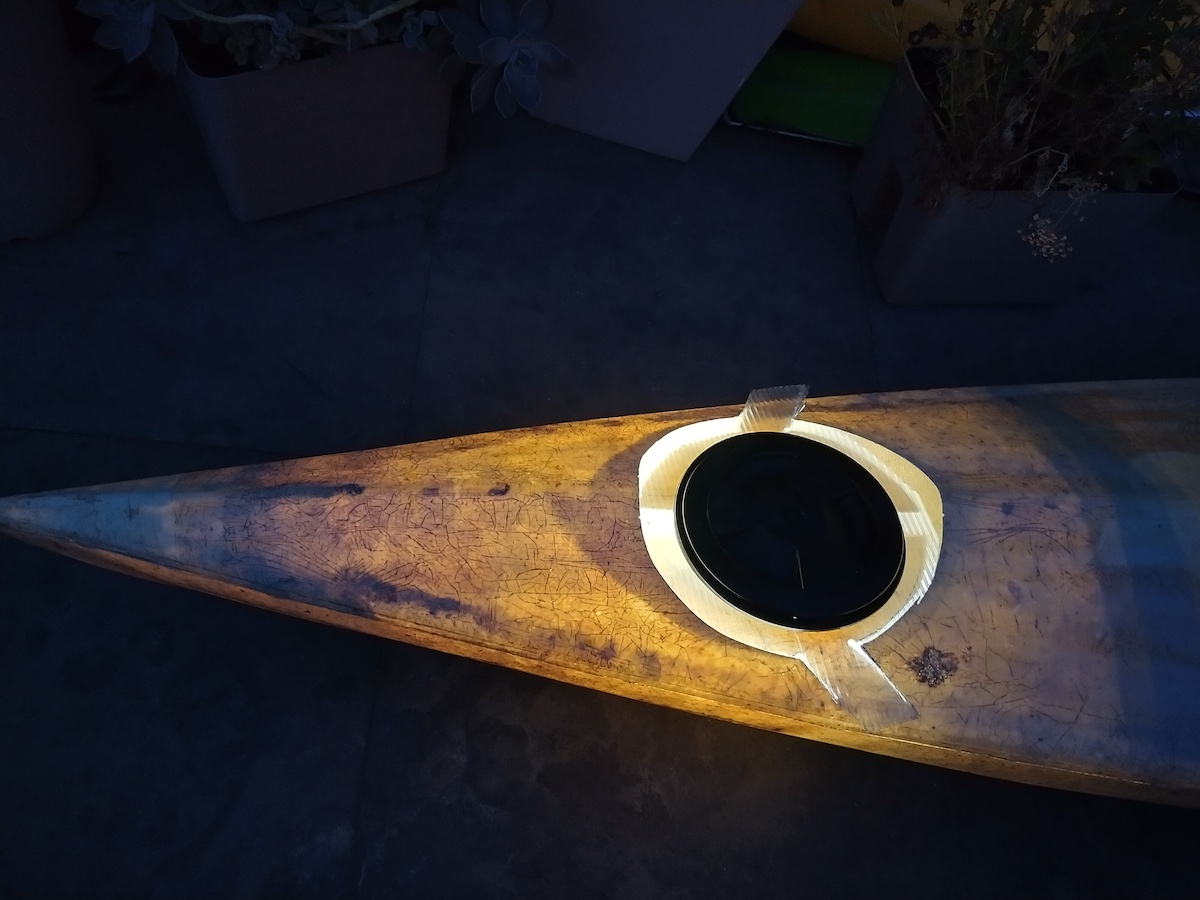

  • Fitting in deck hatch

jpg

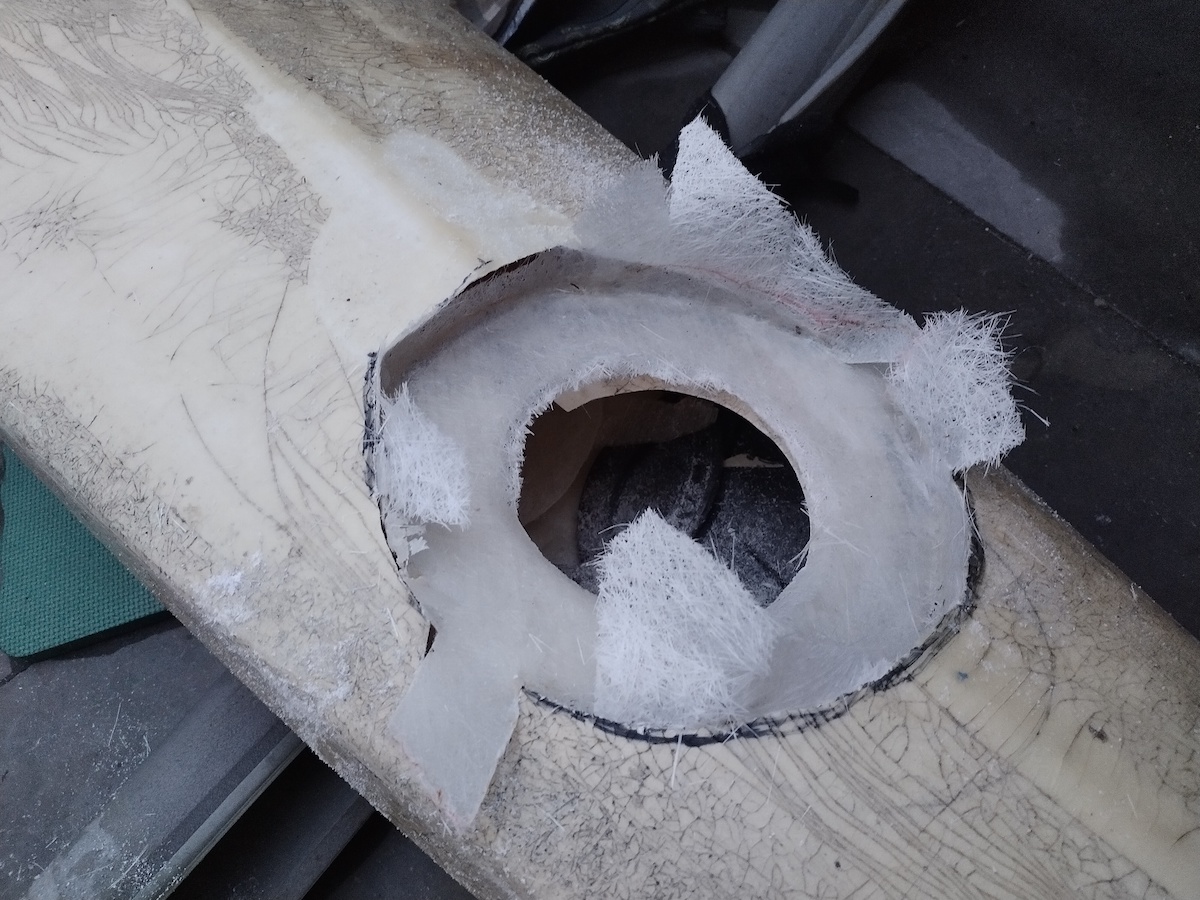

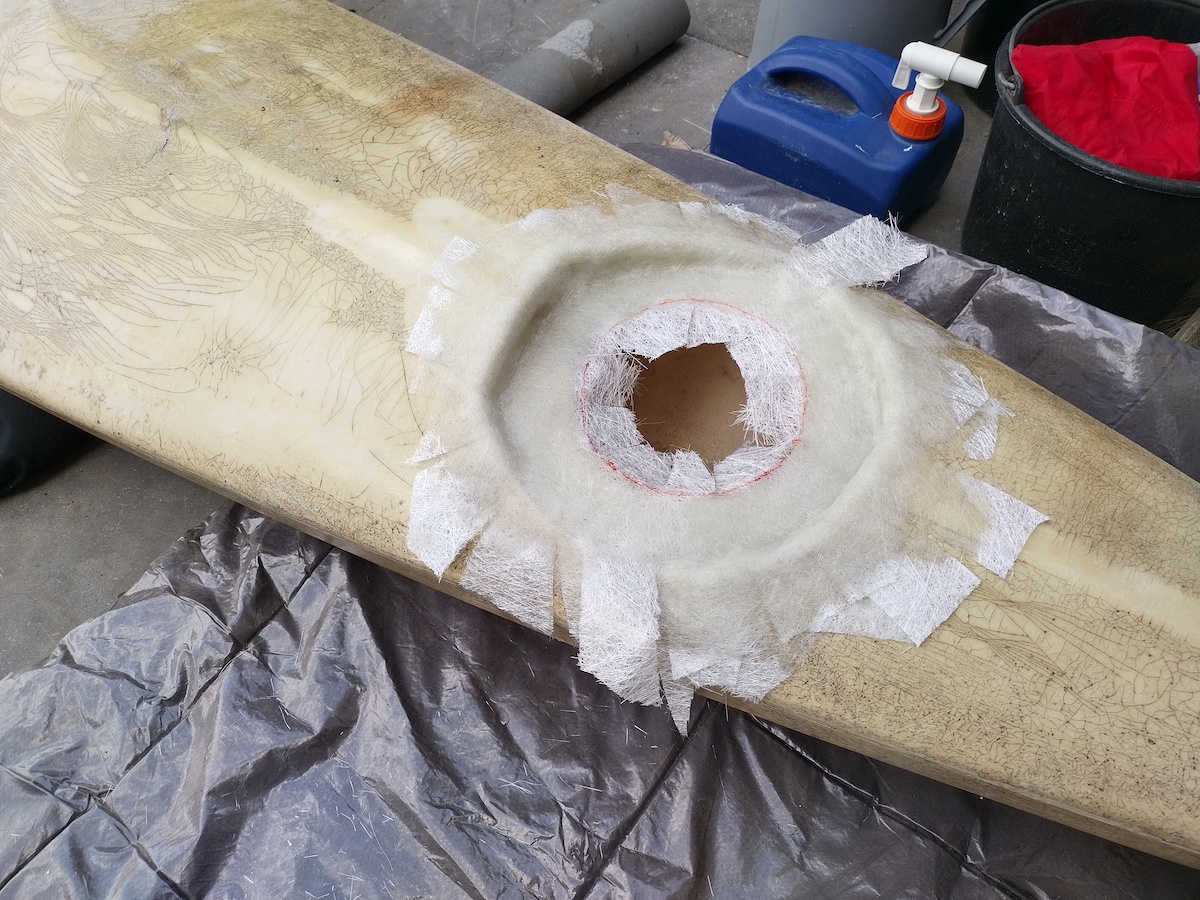

  • Fitting in with epoxy resin of deck hatch

jpg

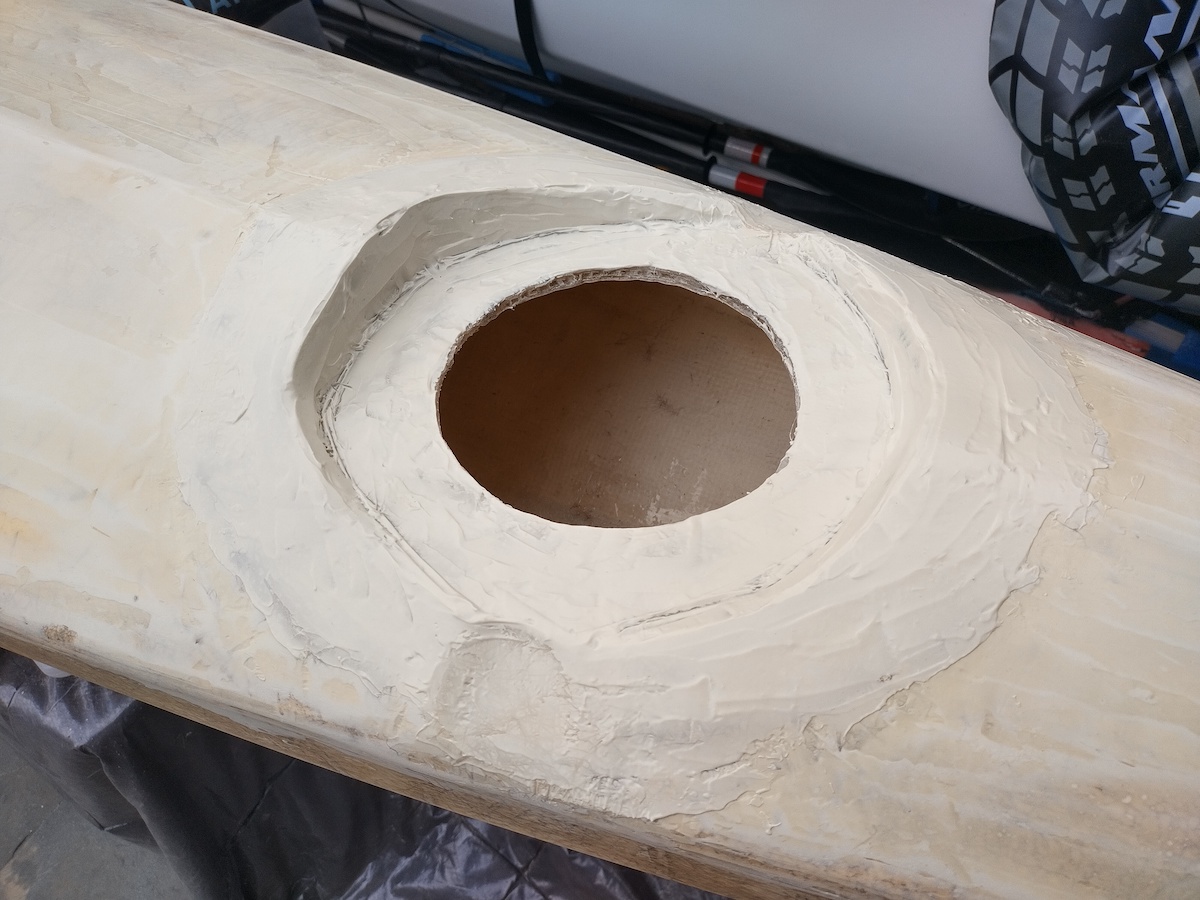

  • Hatches ready for sanding (rest of top is already sanded)

jpg

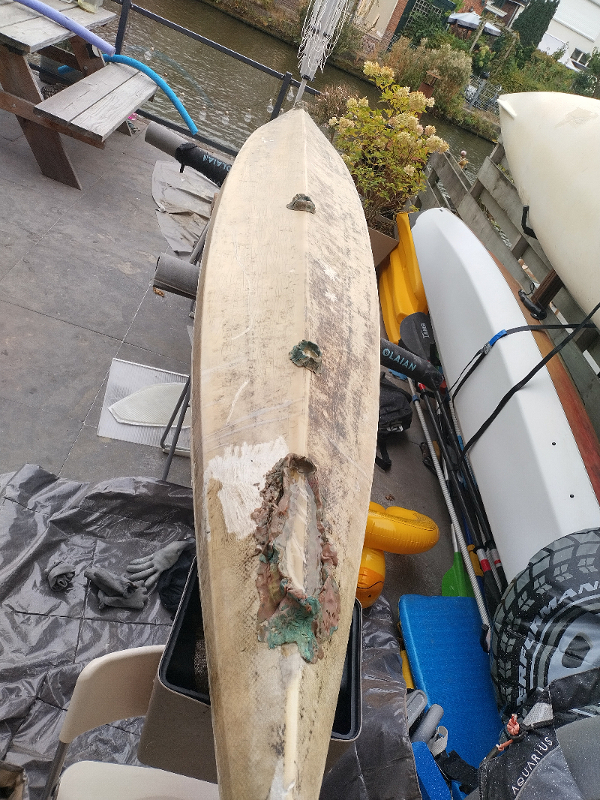

  • Cleared large cracks and filled with resin

jpg

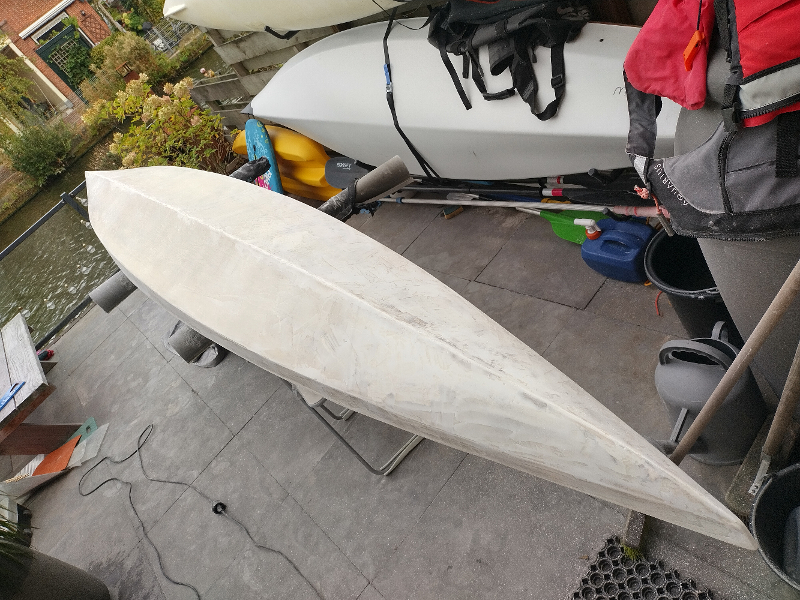

  • Plastered rest and sanded down (ready for painting)

jpg

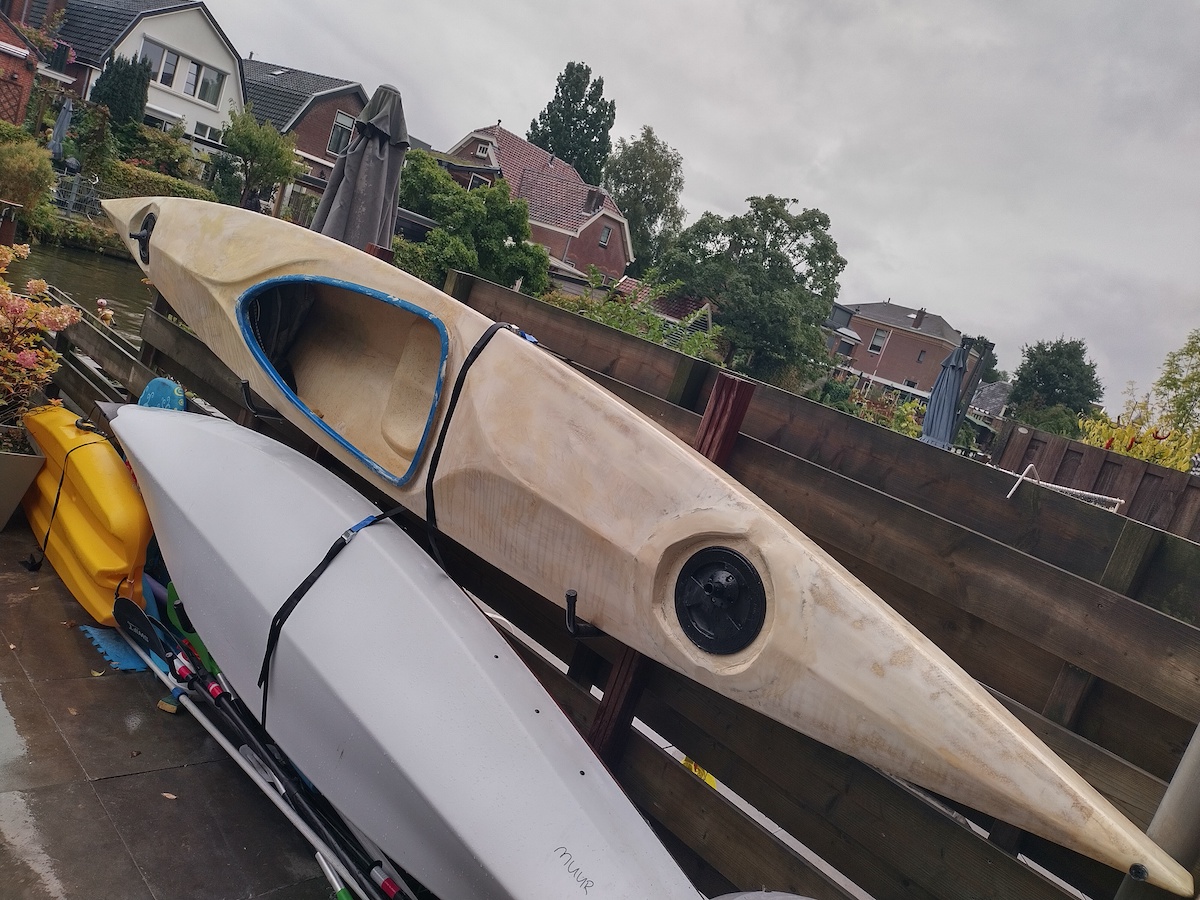

  • Ready for painting, but the weather is not. So until next year
